DSS GCB4510P Network Bullet Camera
Product Details
• Vandal proof outdoor bullet type 4 megapixel High Resoulution network surveillance camera (2720 x 1536 @ 25fps)
• Advanced WDR with 2.8mm wide angle progressive scan system
• Wide Dynamic Range Function
• Smart IR Function
• Support Audio recording by line in or its built-in microphone
• Advanced ONVIF network protocol
• Powered by PoE
• Advanced H.265 video format for efficient storgae conserve
• Built-in BNC direct image output for competitive installation support
• Outdoor usage
Description
Surveillance Series
High Resolution Network Camera GCB4510PA
Key Feature
- High Quality video Resolution of 4 Megapixel
- 2.8mm Fixed Lens
- Wide Dynamic Range Function
- H.265 Video Compression Format
- Smart IR function
- Outdoor Usage
Specifications
VIDEO
- Imaging Device : 1/3″ OmniVision 4.0 Megapixel Progressive CMOS Sensor
- Video Frame Rate : 2720×1536@25fps
- Min. Illumination : Color:0.2 Lux@F2.0,B/W0.01Lux@F2.0, IRONOLux@F20
- Mechanical IR Cut (ICR) : Automatically Switches
- Audio : Line in and Microphone built in
- IR Distance : 15m (Smart IR. According to range of object to avoid R explosure)
LENS
- Focal Length : F2.8mm
- Lens Adapter : Built-in Fixed Lens
- Mount Type : On Board
- Min. Object Distance : 0.2m
- Lens Type : DC auto iris
OPERATIONAL
- On Screen Display : English, Chinese
- Day & Night : Color / B&W / Auto
- WDR; BLC : WDR/BLC/HLC
- Motion Detection : On / Off
- Privacy Masking : On/Off
- Image Setting : Saturation / Brightness / Contrast / Sharpness / Mirror / Flip
- White Balance : ATW / AWB / PWBIPush Lock) / Manual
- Electronic Shutter Speed : Auto :1/25/30)-1/30,000s
NETWORK
- Ethernet : RJ-45 (10/100Base-T)
- Video Compression Format : H.265, H.264, MPEG4, M-JPEG
- Bit Rate : CBR or VBR or EVBR
- Protocol : ARP, PPPOE, IPV4/V6, ICMP, IGMP, Q.5, TCP, UDP, DHCP, UPnP, SNMP, SMTP, RTP, RTSP, HTTP, HTTPS, FTP NTP, DDNS
- Security : User Authentication/HTTPS/IP Filter/IEEE 802.1x
- Users : 4 simultaneous unicast users
- Compatibility : ONVIF
- Web Viewer : Windows® 7,8,10
ENVIRONMENTAL
- Operating Temperature : -30°C -55°C
- Operating Humidity :Less than 90% RH
- Protection Level : Outdoor Usage
ELECTRICAL
- Input Voltage : 12V DC, PoE (IEEE 802.3af class 0)
- Power Consumption : 1.14W (MAX 7.12W)

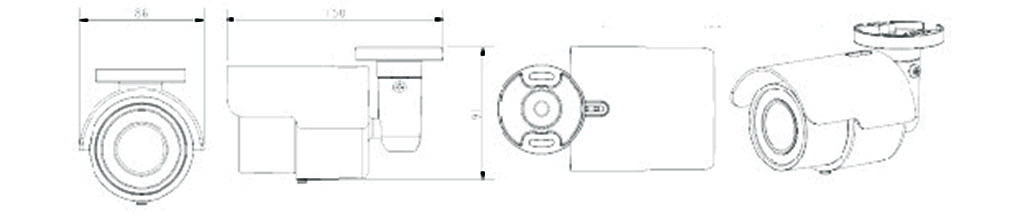

MECHANICAL
- Connector : RJ-45 10/100Base(PoE), 12V DC, m5D card
- Dimensions : 479x 130mm
- Net Weight : 340g
Derivative products: 608-45100
