Product Details

Surveillance Series

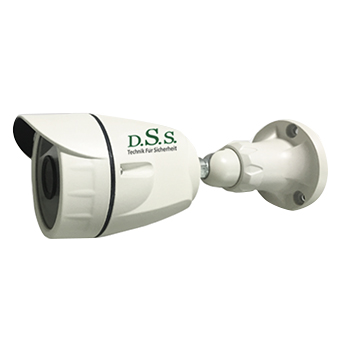

High Resolution Network Camera GCB3510P

Key Feature

• High Quality video Resolution of 3 Megapixel
• Smart IR Feature
• 3.6mm Fixed Lens
• Wide Dynamic Range Function
• H.265 Video Compression Format
• 15M IR Distance

Specifications

VIDEO

• Imaging Device : 1/28 SONY Exmor 3.0 Megapixel Progressive CMOS Sensor
• Video Frame Rate : 2048×1536@25fps
• Min. Illumination : Colar:0.02.@F1.2, BW.0.005LUX@F1.2, IR On-Lux@F1.2
• Mechanical IR Cut (ICR) : : Automatically Switches
• Audio : N/A
• IR Distance : 15m (Smart IR. According to range of object to avoid R explosure)

LENS

• Focal Length : F3.6mm
• Lens Adapter : Built-in Fixed Lens
• Mount Type : On Board
• Min. Object Distance : 0.2m
• Lens Type : DC auto iris

OPERATIONAL

• On Screen Display : English, Chinese
• Day & Night : Color / B&W / Auto
• WDR; BLC : WDR/BLC/HLC
• Motion Detection : On/Off
• Privacy Masking : On/Off
• Image Setting : Saturation / Brightness / Contrast / Sharpness / Mirror / Flip
• White Balance :ATW / AWB / PWBIPush Lock) / Manual
• Electronic Shutter Speed : Auto :1/25/30)-1/30,000s

NETWORK

• Ethernet : RJ-45 (10/100Base-T)
• Video Compression Format : H.265, H.264, MPEG4, M-JPEG
• Bit Rate : CBR or VBR or EVER
• Protocol :IPv4, IPv6, TCP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DONS, DHCP, DIPS, ARP, Bonjour, UPnP,RTSP, RTP, RTCP, IGMP, PPPoE, 3GPP, Samba, ICMP, SNMP, 005, Co5, 802.1x, iSCSI
• Security : Password protection, IP address filtering, HTTPS encrypted data transmission, user access log
• Users : 20 simultaneous unicast users
• Compatibility : ONVIF
• Web Viewer : Windows 7,8,10

ENVIRONMENTAL

• Operating Temperature : -20°C -50°C
• Operating Humidity : Less than 80% RH
• Protection Level : IP66, K10

ELECTRICAL

• Input Voltage : 12V DC, PoE (IEEE 802.3af class 3)
• Power Consumption : 3WJR Or 7W

MECHANICAL

• Connector : RJ-45 10/100Base (PoE)

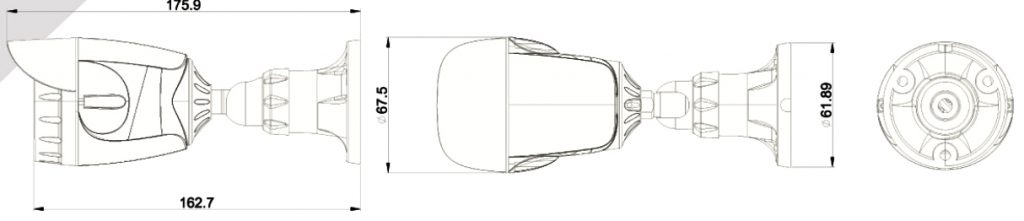

• Dimensions : 0163 x 68/Dimm
• Net Weight : 300g

Denvative products: GO8-3510P
